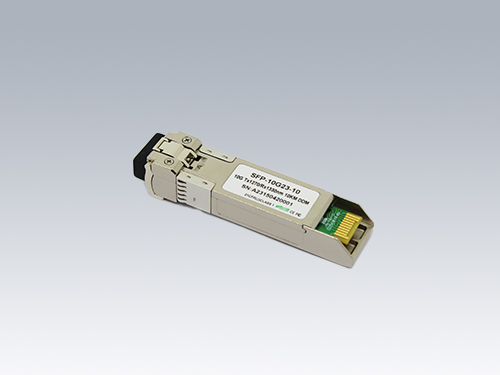

10G 万兆单纤模块 40KM
10G 万兆单纤模块 40KM
JY's BIDI SFP+ transceivers are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1330(1270nm) transmitter and 1270(1330) nm receiver. The transceiver consists of two sections: The transmitter section uses a multiple quantum well 1330(1270) nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1270(1330) nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
-
Features:
• One Fiber Bi-Di SFP+ Optical Transceiver
• Up to 10.3 Gbps Bi-directional Data Links
• Fully Compliant with SFP+ MSA
• Compliant to IEEE 802.3ae 10GBASE-BX
• SFF-8472 Digital Diagnostic Function
• Simplex LC Connector
• Distance Up to 60 km
• +3.3 V Power Supply
• RoHS Compliant
• -5 to 70C Operating Temp.Applications:
• 10GBASE-BX at 10.3125 Gb/s
• 10GBASE-BX at 9.953 Gb/s
• 1000 Base-LX Ethernet
• 8XFC at 8.5Gbps
• 4XFC at 4.25Gpbs
• 2XFC at 2.125Gpbs
• 1xFC at 1.0625Gbps
