10G 万兆双纤模块
10G 万兆双纤模块

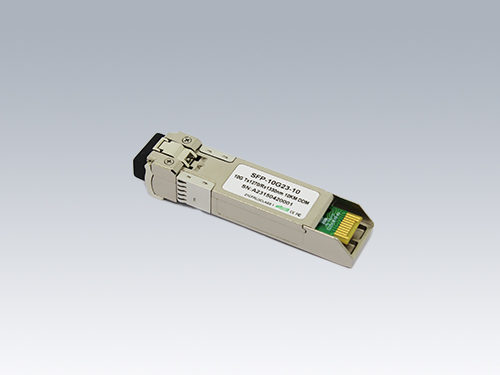

JY's SFP+ transceiver are multi-purpose optical modules for 10Gbit/s data transmission applications at 850nm, 1310nm and 1550nm. The transceivers are ideally suited for datacom and storage area network (SAN/NAS) applications based on the IEEE 802.3ae and Fibre Channel standards, Fiber Channel 10G, 8.5G, 4.25G, 2.125G, 1.0625G, 10G BASE-SW/SR/LR/ER, 1000 Base-SX Ethernet.
-
Features:
• Compliant to SFP+ Electrical MSA SFF-8431
• Compliant to SFP+ Mechanical MSA SFF-8432
• Multi rate of up to 11.3Gb/s
• 10G Ethernet compliance
• Transmission distance up to 80km
• Low power consumption
• 0~+70C case operating temperature range
• Laser Class 1 IEC / CDRH compliant
• RoHS 6 compliant
• Compliant with product safety standardsApplications:
• 10Gbase-SR LR ER at 10.31Gbps
• 10Gbase-LW at 9.95Gbps
• 1000 base-LX Ethernet
• 8XFC at 8.5Gbps
• 4XFC at 4.25Gpbs
• 2XFC at 2.125Gpbs
• 1xFC at 1.0625Gbps
