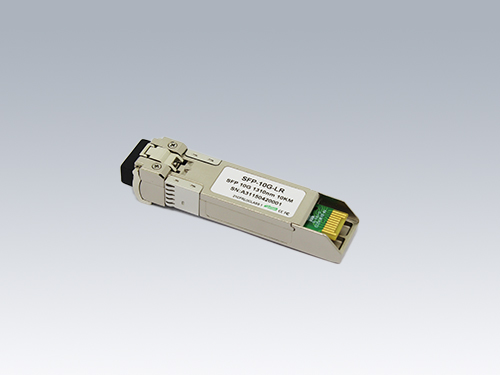

10G 万兆单纤模块

10G 万兆单纤模块

JY's BIDI SFP+ transceivers are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1330(1270nm) transmitter and 1270(1330) nm receiver. The transceiver consists of two sections: The transmitter section uses a multiple quantum well 1330(1270) nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1270(1330) nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
  • Features:

    •  One Fiber Bi-Di SFP+ Optical Transceiver

    •  Up to 10.3 Gbps Bi-directional Data links

    •  Fully Compliant with SFP+ MSA

    •  Compliant to IEEE 802.3ae 10Gbase-BX

    •  SFF-8472 Digital Diagnostic Function

    •  Simplex LC Connector

    •  Distance Up to 60 km

    •  +3.3 V Power Supply

    •  RoHS Compliant

    •  -5 to 70C Operating Temp.

    Applications:

    •  10Gbase-BX at 10.3125 Gb/s

    •  10Gbase-BX at 9.953 Gb/s

    •  1000 base-LX Ethernet

    •  8XFC at 8.5Gbps

    •  4XFC at 4.25Gpbs

    •  2XFC at 2.125Gpbs

    •  1xFC at 1.0625Gbps
